VAST XXT Styli with M3 thread were developed especially for ZEISS VAST XXT measuring probes. ZEISS M3 XXT styli have a much higher rigidity than conventional M3 styli. This stiffness is achieved through a 1 mm larger diameter of the XXT adapter with a titanium allow base body. This alloy also makes the adapters significantly lighter than steel, non-magnetic and corrosion resistant. In the M3 XXT range, different stylus elements (sphere, ball cylinder etc.) made of different materials and different shaft designs (shape, material) are available.

  • Standard styli
    Standard styli
    Spherical styli with straight and stepped shafts are used for all standard applications.
  • Clamping styli

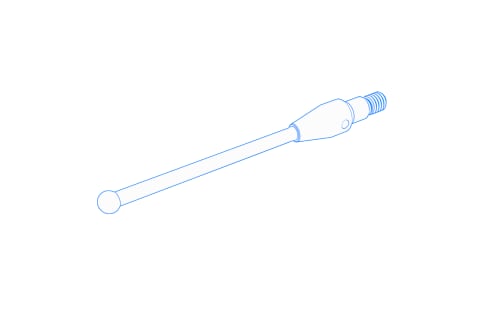

    Clamping styli
    Clamping styli in addition to the clamping screw portfolio for star elements
  • Reference styli
    Reference styli
    Reference styli with maximum accuracy
  • Hemisphere styli
    Hemisphere styli
    Hemisphere styli are used for large diameters where low weight is needed
  • Diamond!Scan®
    Diamond and diamond coated stylus for scanning soft aluminium surfaces and hard (abrasive) materials
  • Special diameter
    Special diameter
    Styli with special sphere diameter for dedicated applications
