M3 XXT

Our original ZEISS rotary joints are based on a backlash-free conical connection. Three robust M1.2 threaded pins with torx interfaces provide high clamping forces. The rotary joints can be easily adjusted even after repeated assembly and disassembly of the stylus system and hold their styli securely.
34 products
Change view
Sort results

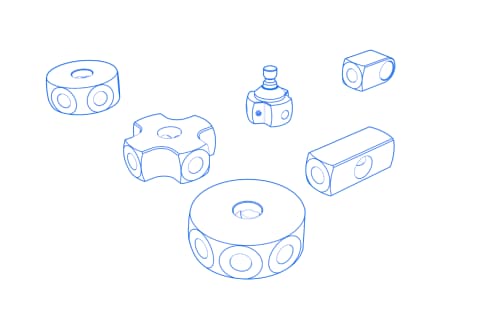

cube, M3XXT, 90 degree, single
626103-6110-001
cube, M3XXT, 90 degree, single product photo
cube, M3XXT, 90 degree, single
626103-6110-001
Length (L)
6,5 mm
1. Angle (°)
90,0 °
564,00 krexcl. VAT
 Same day shipment
Shipping info

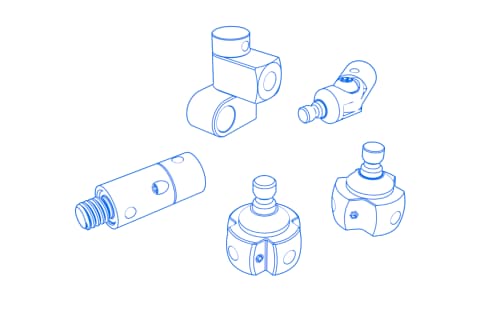

Knuckle joint with cone adapter
626103-6180-021
Knuckle joint with cone adapter product photo
Knuckle joint with cone adapter
626103-6180-021
Length (L)
12,0 mm
1.029,00 krexcl. VAT
 Same day shipment
Shipping info
Cone receiver, M3 XXT System
626103-6180-002
Cone receiver, M3 XXT System product photo
Cone receiver, M3 XXT System
626103-6180-002
Length (L)
7,0 mm
846,00 krexcl. VAT
 Same day shipment
Shipping info
Clamping Screw with female thread, M3 XXT
626103-6110-005
Clamping Screw with female thread, M3 XXT product photo
Clamping Screw with female thread, M3 XXT
626103-6110-005
Length (L)
8,0 mm
159,00 krexcl. VAT
 Same day shipment
Shipping info
Cube, M3 XXT 4 sided
626103-6110-003
Cube, M3 XXT 4 sided product photo
Cube, M3 XXT 4 sided
626103-6110-003
Length (L)
13,0 mm
1. Angle (°)
90,0 °
772,00 krexcl. VAT
 Same day shipment
Shipping info
cube, M3XXT, 180 degree, double
626103-6110-002
cube, M3XXT, 180 degree, double product photo
cube, M3XXT, 180 degree, double
626103-6110-002
Length (L)
13,0 mm
1. Angle (°)
180,0 °
637,00 krexcl. VAT
 Same day shipment
Shipping info

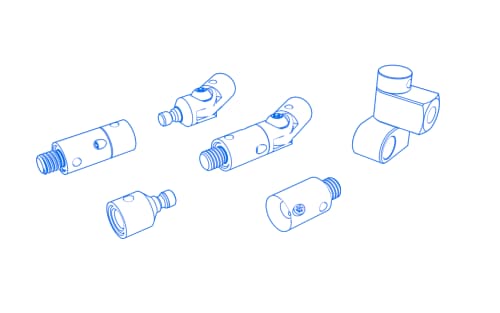

Offset rotating knuckle joint, M3 XXT
626103-6180-001
Offset rotating knuckle joint, M3 XXT product photo
Offset rotating knuckle joint, M3 XXT
626103-6180-001
Length (L)
10,0 mm
1.311,00 krexcl. VAT
 Same day shipment
Shipping info
Rotary joint, M3 XXT
626103-6180-010
Rotary joint, M3 XXT product photo
Rotary joint, M3 XXT
626103-6180-010
Length (L)
11,0 mm
1.164,00 krexcl. VAT
 Same day shipment
Shipping info
Rotating knuckle joint, M3 XXT
626103-6180-020
Rotating knuckle joint, M3 XXT product photo
Rotating knuckle joint, M3 XXT
626103-6180-020
Length (L)
19,0 mm
1.752,00 krexcl. VAT
 Same day shipment
Shipping info

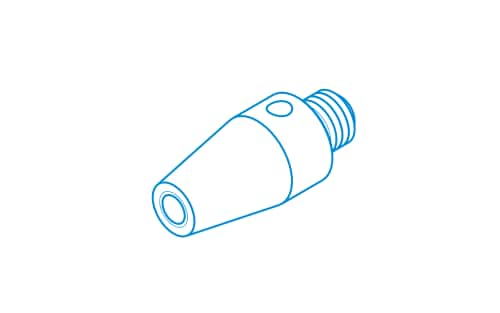

Adapter, M3 XXT bolt, M2 drill hole
626170-0002-715
Adapter, M3 XXT bolt, M2 drill hole product photo
Adapter, M3 XXT bolt, M2 drill hole
626170-0002-715
Length (L)
9,0 mm
208,00 krexcl. VAT
 Shipment within 2 Working days

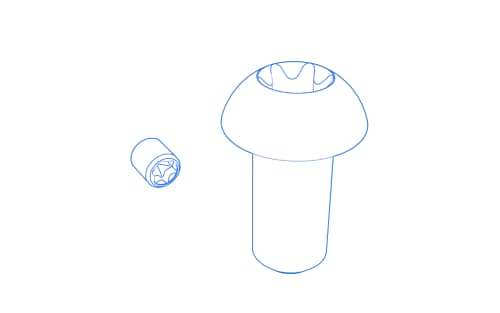

Screws for cone receiver, (6) M3 XXT
626119-0001-041
Screws for cone receiver, (6) M3 XXT product photo
Screws for cone receiver, (6) M3 XXT
626119-0001-041
257,00 krexcl. VAT
 Shipment within 2 Working days
Star element with cone adapter, 4 x DS 1.5
626103-6180-004
Star element with cone adapter, 4 x DS 1.5 product photo
Star element with cone adapter, 4 x DS 1.5
626103-6180-004
Length (L)
4,7 mm
Ø Shaft (DS)
1,5 mm
Meas. Len.
2,5 mm
1. Angle (°)
120,0 °
3.713,00 krexcl. VAT
 Shipment within 2 Working days
Star element with cone adapter, 3 x DS 1.5
626103-6180-003
Star element with cone adapter, 3 x DS 1.5 product photo
Star element with cone adapter, 3 x DS 1.5
626103-6180-003
Length (L)
4,7 mm
Ø Shaft (DS)
1,5 mm
Meas. Len.
2,5 mm
1. Angle (°)
90,0 °
3.505,00 krexcl. VAT
 Shipment within 2 Working days

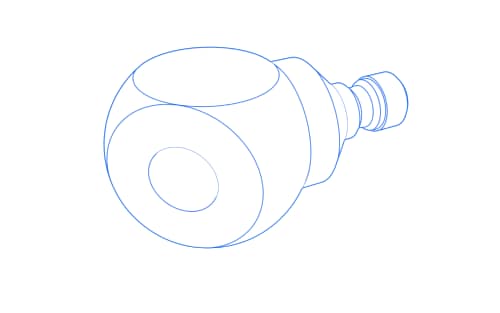

Angle piece with cone adapter
626103-6020-069
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-069
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
69,0 °
993,00 krexcl. VAT
 Shipment within 20 Working days
Angle piece with cone adapter
626103-6020-045
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-045
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
45,0 °
993,00 krexcl. VAT
 Shipment within 2 Working days
Angle piece with cone adapter
626103-6020-021
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-021
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
21,0 °
993,00 krexcl. VAT
 Shipment within 20 Working days
Angle piece with cone adapter
626103-6020-040
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-040
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
40,0 °
993,00 krexcl. VAT
 Shipment within 20 Working days
Angle piece with cone adapter
626103-6020-090
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-090
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
90,0 °
993,00 krexcl. VAT
 Shipment within 2 Working days
Angle piece with cone adapter
626103-6020-025
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-025
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
25,0 °
993,00 krexcl. VAT
 Shipment within 2 Working days
Rotary piece with cone adapter
626103-6180-011
Rotary piece with cone adapter product photo
Rotary piece with cone adapter
626103-6180-011
Length (L)
4,0 mm
319,00 krexcl. VAT
 Shipment within 2 Working days
Angle piece with cone adapter
626103-6020-030
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-030
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
30,0 °
993,00 krexcl. VAT
 Shipment within 2 Working days
Angle piece with cone adapter
626103-6020-035
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-035
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
35,0 °
993,00 krexcl. VAT
 Shipment within 2 Working days
Angle piece with cone adapter
626103-6020-039
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-039
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
39,0 °
993,00 krexcl. VAT
 Shipment within 20 Working days
Angle piece with cone adapter
626103-6020-117
Angle piece with cone adapter product photo
Angle piece with cone adapter
626103-6020-117
Length (L)
7,75 mm
Meas. Len.
4,0 mm
1. Angle (°)
40,5 °
993,00 krexcl. VAT
 Shipment within 20 Working days
34 Items
